The CJC™ Filter elements are produced from unbleached cotton / semi chemical cellulose. There are two types of CJC™ Filter elements, the A elements which are made from semi chemical cellulose and the B elements that are either cotton cellulose based or a mix of cotton cellulose and semi chemical cellulose.
CJC™ Filter Elements exhibit very deep oil filtration characteristics and an extensive dirt and water absorption capacity (up to 4 liters of dirt per element).
All CJC™ Filter Elements have an oil filtration degree of 3 µm (micron) absolute, i.e. 98.7% of all solid particles > 3 µm and approximately 50% of all particles > 0.8 µm will be retained in one pass.
| TYPE |
FOR
UNITS |
SIZES |
DESCRIPTION |
APPLICABLE FOR OIL TYPES |
| A |
HDU |
15/25 27/27 |
Thick smooth discs/high
viscosity oils & dry oil |
Hydraulic, lube, turbine,
poly-glycol |
| B |
HDU
|
15/25 27/27 |
Has ridges on each
disc |
Hydraulic,lube,turbine,gear,
quenching |
| BLA |
HDU
PTU PFU* |
15/25 27/27 |
"B" made out of acrylic
coated cotton/much water |
Water, cleaning fluid,
oil/water emulsions |
| BLAT |
PTU |
27/27 |
"BLA" top & bottom
disc smooth/much water contamination |
Hydraulic,turbine,gear |
| BLDA |
HDU |
27/27 |
"BLA" made with demineralized
water |
Water glycol |
| F |
PTU |
15/25 27/27 |
Smooth tapered disc/low
viscosity oils/mild water contamination |
Diesel, gas |
* Production of the PFU-series has been discontinued. However the PFU
applicable filter elements are still produced

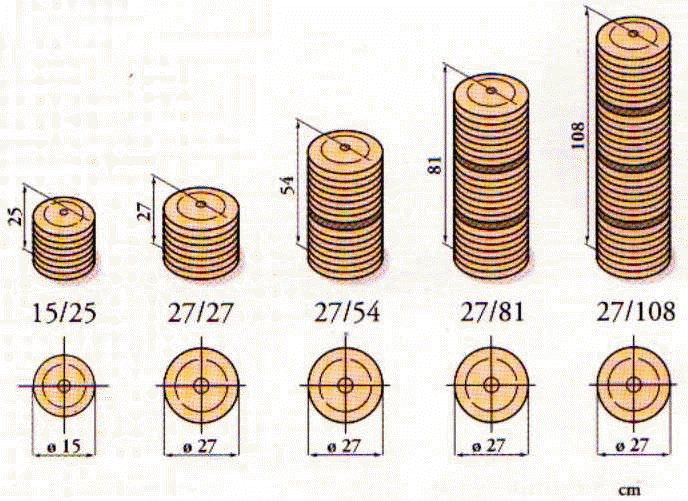

This chart represents
how the filter inserts are stacked in the various unit sizes.
|
| |
A inserts (15, 27, 38) |
|
|
Used in HDU Fine Filters for lubricating oil in two-stroke diesel engines,
drain oil in two-stroke diesel engines. A-inserts can be used in dry mineral
hydraulic oil, dry turbine lubricating oil, phosphate ester, cooling oil,
compressor lubricating oil, transformer oil, polyglycol and roller oil. |
| |
| |
B inserts (15/25, 27/-) |
|
|
Used in HDU Fine Filters for lubricating oil, dry and slightly water contaminated
hydraulic oils, dry turbine lubricating oil, dry or slightly water contaminated
gear oil, phosphate ester, cooling oil, compressor lubricating oil, transformer
oil, polyglycol, honing oil and roller oil. |
| |
| |
D inserts (27/-) |
|
|
CJC D-insert are used for special fluid applications. Contact us for details. |
| |
| |
EC, EO, EL inserts (27/-) |
|
|
Ion Exchange Inserts (Fuller's earth, Activated Alumina, Ion Exchange Resin) used for neutralising acidic fluids; for example
phosphate esters, gas engine oil or transformer oil. |
| |
| |
F inserts (15/25, 27/-) |
|
|
In PTU Filter Separator for marine gas oil and marine diesel oil. |
| |
|
|
|
|
|
|
