STEEL/ALUMINIUM INDUSTRY
by Sales Engineer
Jan Foged
|
A SHORT DESCRIPTION OF THE APPLICATION AREA
One of the biggest production facilities in the industry, is the steel/aluminium production. Receiving the raw material, making the steel/aluminium, and then roll them up in very thin plates or just in big bars, takes a lot of time and space.
All over the world, a lot of the plants, have produced for many years. Old systems and highly contaminated enviroments are some of the problems for oil system in the steel/aluminium production. But also problems with cooling water, getting into the oil.
The applications are many, to mention some; Hydraulic system on the cranes, in the strip hal or the roll force system in the Cold Rolling Mill. Gear boxes on conveyers belt or in Steel Rolling Mill, Centrale lubeoil systems for the Rolling Mill. Furthermore we have other places like steam turbines, ovens with phosphate ester, and transformers, just to mention some.
Photo of a Steel plant
Photo of an installation
THE TYPICAL PROBLEM CONCERNING THIS APPLICATION AREA

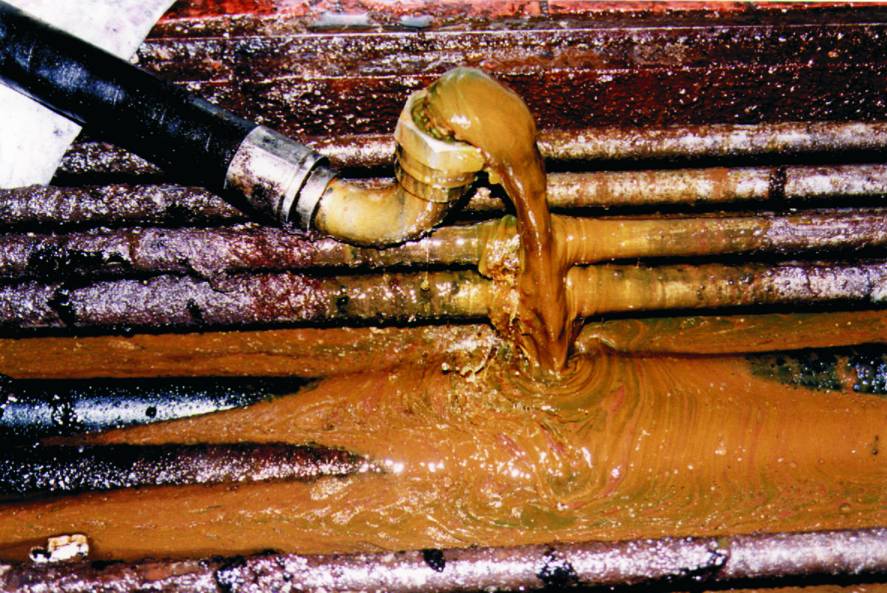

Since the applications are many, we can only say, that any problem can accure in the steel plant. Water is an big enemy for any oil system, and since water in used a lot, to cool, in the production process, water is often a big problem. Depending on the application, the water will be seen as well as free water as emulsion.
Particles are also a very big problem for oil system, contamination generated in the system or coming from the surroundings, all causing problems in the oil system. And because of the very high temperaturs used in the production, some oils will oxidate very quick. Therefore resin formation will accure in a lot of the oil systems.
Link to all of the “Problems we solve”
Particle Contamination
Water Condensation
Water Ingress
Resin
Acility
Combustion Particles
Contamination by air-gasses
Oxidation of oil
VARIANT SYSTEMS ON THIS APPLICATION
· Hydraulic power pack on cranes.
· Hydraulic system for cutting line
· Hydraulic power pack for Paint line
· Hydraulic roll force system on Hot/Cold Mill
· Hydraulic control system on Hot/Cold Mill
· Hydraulic system for the Strip Hall
· Hydraulic system for Pickle Line Bwg Exit
· Hydraulic system for single stand Mill, tension reel levelling line, tension reel steering.
· Hydraulic system for Galvanising line, Matt Mill
· Lineal Hydraulic Rolling gear system
· Hydraulic system for blast furnace
· Main lube oil system
· Gear oil system for Tandem Mill, Scotia Balance and Roll Bender
· Mill Screw Down Gear Lubritation System
· Gear box for Rolling Mill
· Gear box for conveyer belt
· Steam turbine
· Transformer
· Quenching process
· Tool Shop
· Pitch Blower
· Diesel fuel for Engine
OIL TYPES
With a width range of applications, the steel plant off course have a width range of oils. Low viscocity fuel oil to very high vicsocity lube/gear oil. Mineral, as well as synthetic oil, going normally up to ISO VG 460. The most used oil is hydraulic ISO VG 32, 46, 68. Gear oil ISO VG 220, and lube oil ISO VG 68 for turbines, app. ISO VG 220-320 for centrale lube oil system.
Furthermore special fluids like phosphate ester as fire residents. Also Water Glycol, quenching oil, wash oil are some of the special oils used. And transformer oil used in the transformer
Link to all oil types
Lube oil
Gear oil
Hydraulic oil.
Quenching oil
PRODUCTS USED ON THIS APPLICATION
Link to following products
Removel of high water content, particles and resin, from oils with free water.
· CJC Filter Separator type PTU
Removel of high water content, particles and resin, from oils with emulsion:
· D-30, Compact Desorber with Fine Filter.

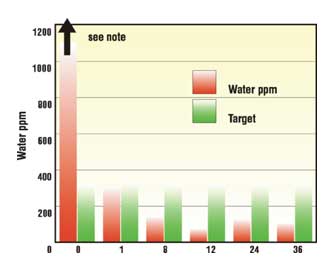

Removel of water in oils with emulsion
· D-38 Desorber
· D-30 Compact Desorber without Filter
(Can both be combiend with a Fine Filter.)
Removel of low water content, particles and resin, from almost all oils.
· CJC Fine Filter type HDU
Removel of water in the oil and insulation paper in Transformers.
· V30 - Vacuum Filter
APPLICATION STUDIES
Cold Rolling Mill Corus
Cold Strip Mill Corus
Cold Strip Mill DAVY - Corus
Corus former Motherwell
Austria:
Böhler GmbH Kapfenberg Hyd. Oil System 6 x HDU 27/108
Quenching Oil 1 x HDU 38/100
V M W Braunau Hyd. System 4 x HDU 27/27
Voest-Alpin AG Linz Servo Hyd. System 1 x HDU 27/54
Linz 5 x HDU 38/60
2 x HDU 38/100
Main Lube Oil System 2 x HDU 727/108
Denmark:
Det Danske
Stålvalseværk Fredriksværk
Plate Mill Hyd. Cutter 1 x HDU 27/81 B M-87 - - 1 x HDU 38/80
Lineal Hydraulic 1 x HDU 27/81 B M-87 Rolling gear system 1 x HDU 27/108 B M87
Main Lube Oil System 1 x CJC Desorber D 38
Conti Works Tool Shop 2 x CJC Cleaning table Casting Div. Hyd. System
Phosphate Ester 1 x 2xHDU 27/54 Mob.
Hyd. System
Water Glycol 1 x HDU 27/54 BLDA Mo.
Egypt
ExxonMobil Egypt MJGROil System 2 x HDU 4 x 27/108 GP-EMPTY
Germany:
Alcan Aluminiumwerk Göttingen Servo Hyd. 2 x HDU 27/27
GmbH Rolling mill Wyrol H 40
Aluminium Norf GmbH Neuss Main Lube Oil Water Removal Rolling mill Mobil Gear 632 1 x CJC Desorber D 38 Hyd. Systems 12 x HDU 38/80
HFC-fluids 1 x HDU 27/27
HFC-fluids Casting Div. 3 x HDU 27/54
Central Lube System 4 x HDU 38/100
Water Removal from Central
Hyd. System 1 x PWTU 27754 BLAT M-82
Bilstein GmbH & Co. Hagen Hyd. system 2 x HDU 27/27
Cold mill 1 x HDU 38/40 1 x HDU 38/60
1 x HDU 38/80
Edelstahlwerk Buderus Wetzlar Forging press 3 x HDU 38/100
AG 2 x HDU 427/108
Main lube oil system 2 x HDU 727/108
Europipe GmbH Ratingen Hyd. system 3 x HDU 27/108
Rolling mill
Hoesch Hohenlimburg Hagen Servo hyd. 24 x HDU 27/27
AG rolling mill hot mill 1 x HDU 27/54
cold mill 2 x HDU 38/80 1 x HDU 38/100
Hoogovens Aluminium Koblenz Furnace hydraulic 1 x HDU 27/54
Gear oil system
Mobil Gear 632 1 x HDU 727/108
Klöckner-Stahl Bremen Servo hyd 2 x HDU 38/100
GmbH Rolling mill
Krupp Hoesch Stahl AG Bochum Hyd. system 1 x HDU 27/108
Rolling Mill Cutting line hyd. 13 x HDU 38/40
BWK+BWW 24 x HDU 38/100
Water removal from 1 x CJC Desorber D 38
Mobil Vacuoline 560
(ISO VG 460)
Central lube oil system 1 x HDU 427/108
cold mill 5 x HDU 38/100
Krupp Hoesch Stahl AG Dortmund Servo hyd. 1 x HDU 27/27
Various lube oil systems 43 x HDU 38/100
Gear oil system 3 x HDU 38/60
Hyd. systems 5 x HDU 38/40
Water removal from
hyd. mineral oil 2 x PWTU 27/54 BLAT M-82
Krupp Hoesch Stahl AG Hohenlimburg Servo hyd. systems 9 x HDU 38/80
Lube oil system 1 x HDU 38/100
Wash oil Lubricor
540 + 1210
Krupp Stahl AG Rheinhausen Blast furnace 1 x HDU 27/27
HFC-fluids 3 x HDU 27/108
Lube oil system Anderol 3 x HDU 38/100
497
Gear oil system 1 x HDU 38/60
Preussag Stahl AG Salzgitter Servo hyd. 6 x HDU 38/100
Rasselstein AG Andernach Lube oil system 9 x HDU 38/100
Thyssen Edelsthalwerk Krefeld Hyd. presses 2 x HDU 27/27
AG Vacuum pump system 2 x HDU 27/54
Quenching oil 6 x HDU 38/100
Thyssen-Stahl AG Bruckhausen Gear oil system 3 x HDU 38/80
Thyssen-Stahl AG Duisburg Servo. hyd. system 3 x HDU 27/54
Degas pitch blower 3 x HDU 27/81
Blast furnace 1 x HDU 38/40
Hyd. systems 15 x HDU 38/100
Thyssen-Stahl AG
Werk Beekerwerth Beekerwerth Servo hyd. 3 x HDU 38/80
Hot rolling mill
Thyssen-Stahl AG Bruckhausen Servo hyd. 1 x HDU 27/14
Werk Bruckhausen - - HFC fluid 1 x HDU 27/27
Lube oil system 6 x HDU 27/54
Linear hydraulic 1 x HDU 38/80
6 x HDU 38/100
Walzwerk Hüttenheim Hüttenheim Servo hyd. in 1 x HDU 38/40
cold mill III 2 x HDU 38/60
Gear oil system 3 x HDU 38/100
Holland:
Hoogovens Ijmuiden Ijmuiden Hyd. system 1 x HDU 38/60
Warmbandwalzwerk 2 x CJC Cleaning tables
Sweden:
Avesta Sheffield AB Avesta Hyd. system 4 x HDU 15/25
Björneborg Järnverk AB Björneborg Hyd. system 1 x HDU 27/54 B M-85
1 x HDU 27/81 B M-87
Forging press 40.000 ltr 1 x HDU 8x27/108 M-87
Björneborg Järnverk Kristinehamn Press 1 x HDU 8 x 27/81
Era Steel AB Söderfors Hyd. system 1 x HDU 27/81M-87
1 x HDU 38/100
Hyd. cutter 1 x HDU 27/81 B M-85 Lube oil system 1 x HDU 27/108 B M-85
Hyd. system rolling mill 4 x HDU 27/27 B M-85
Kockums Jernverk AB Ronneby Hyd. system 1 x HDU 27/27 B
Sandvik Steel AB Sandviken Hyd. system 2 x HDU 15/25
Gear oil system 3 x HDU 15/25
SSAB Borlänge Water removal from central
lube oil system rolling mill 2 x CJC Desorber D 38
Uddeholm Strip
Steel AB Munkfors Hyd. system 1 x HDU 27/27
Lube oil system rolling mill 2 x HDU 427/108
United Kingdom:
BRITISH STEEL Bryngwyn Paint Line 1 - Exit Powerpack 1 x HDU 15/25 B
BRITISH STEEL Deeside CSM BWG Exit (Pickle Line) 1 x PWTU 27/108
CSM (Scotia Balance Hyd 1 x PWTU 27/108 Power Pack)
Temper Mill Hyd Power Pack 1 x HDU 15/25 B (800 l capacity)
CSM No 4 Temper Mill 1 x HDU 15/25 B
(Tension Level. Power Pack)
Coatings 2 (Hyd Power Pack) 3 x HDU 15/25 B (Tension Leveller Power Pack)
CSM 5 Stand Auxiliary Power 1 x PWTU 27/108
Pack
Rolling Mill - Aux. Hydr. System 1 x PWTU 27/108
Coatings 2 No 6 Entry Hydraulics 1 x HDU 27/54 B
Coatings 2 (Range of Power 1 x HDU 27/27 B Mobile
Packs)
Coatings 2 No 6 Exit Hydraulics 1 x HDU 27/54 B
Coatings 2 No 5 Entry Hydraulics 1 x HDU 27/54 B
Coatings 2 No 5 Exit Hydraulics 1 x HDU 27/54 B
No. 5 Galv. 1 x HDU 27/54 B M85
Rolling Mill Lube System 1 x HDU 5x27/108 B
BRITISH STEEL
SEAMLESS TUBES Wednesfield Hydraulic Power Packs 1 x HDU 27/27 B Mobile
BRITISH STEEL Motherwell ‘A’ System Mill Screw Down 1 x HDU 3x27/108 B
Gear Lube System.
‘B’ System Mill Screw Down 1 x HDU 4x27/108 B
Gear Lube System.
Water Removal from “A”
& “B” Systems 1 x Desorber D 38 M-95
Main Hydraulics 1 x HDU 27/108 B
AGC System 1 x PWTU 27/108
BRITISH STEEL Scunthorpe Plate Mill 1 x HDU 27/27 B Mobile
Heavy Sections Mill 1 x HDU 27/27 B
1 x HDU 27/81 B
BRITISH STEEL Tafarnaubach Tension Leveller Power Pack 1 x HDU 15/25 B
CHESTERFIELD
CYLINDERS Power Pack 1 x HDU 27/27 B
CONTROL GEAR On behalf of British Steel, Shotton 1 x HDU 1525
(FILTRATION) LTD On behalf of British Steel, Ebbw 1 x HDU 15/25 BG
Vale
CO-STEEL
SHEERNESS Sheerness Morgan Rod Mill 1 x Desorber D 38 M-95
TATA LTD Steel Mill in India 8 x HDU 27/108
Turkey:
Cukurova Celik Encûstrisi A.S. Hydraulics 1 x HDU 27/27 P
USA:
Birmingham Steel Seattle, WA Rebar 1 x HDU 27/27 B M85
California Steel Fontana, CA Bar/Rolling Mill 3 x HDU 15/25
Corp. 1 x HDU 27/27 B M85
Oregon Steel Corp. Portland, PR Rolling Mill 2 x HDU 27/108 M87
Nycor-Yamato Blytheville, AR Rolling Mill 1 x HDU 2x27/81 B M87
Brillion Iron Works Brillion, WI Foundry 1 x HDU 27/54 B M87
|
|
Steel/Aluminum Industry:
|
 Corus, Cold Rolling Mill - Hydraulic Servo System
|
|
|
|
|
|
|
